multibase 2042

When the available ceiling height and lift pit are very low, the MultiBase 2042 offers the solution.

The ideal solution, therefore, for existing buildings that are being renovated or to make a new design meet the imposed urban planning requirements.

Specifications:

| Available as single or double platform - parking of 2 to 4 cars per system

| A sloping platform at the top and bottom

| Standard model: 2000 kg load per platform

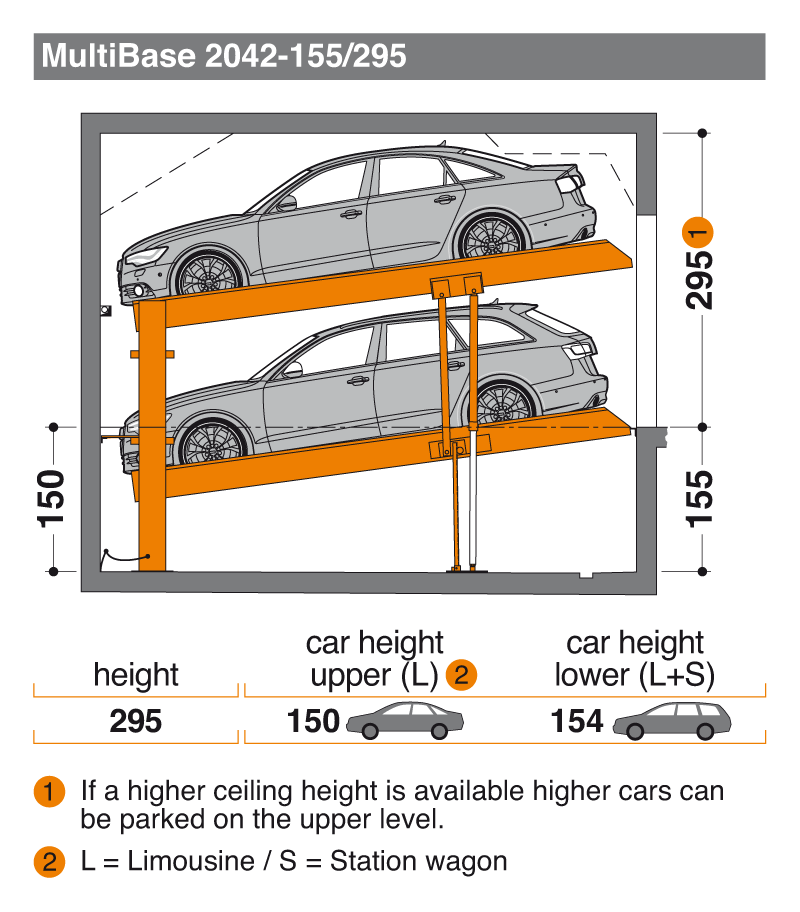

| Total height standard type: 310 cm

| Pit depth standard type: 150/155cm

| Car height: from 150 to 154cm

| Car length: 500 to 520cm

| Useful width: 230cm-270cm for single platform and 460cm-500cm for double platform

| Platform: StandardGrip – EasyWalk or AluLongLife

The different versions:
