multibase 2072i

For independent stacked parking of vehicles, the MultiBase 2072i is a widely used solution.

After all, this system is versatile: single or double platform width, high payloads per parking space, large car heights, etc. This solution is suitable for all types of vehicles, including all-terrain vehicles up to 215 cm high!

All parking spaces are used horizontally.

The offset of the columns allows further opening of the vehicle doors and thus increases user comfort.

Specifications:

| Available as single or double platform - parking of 2 to 4 trolleys per system

| Horizontal flat platform

| Standard model: 2000 kg load per platform, optionally extendable to 2600 kg or 3000 kg

| Total height standard type: 335 cm

| Pit depth standard type: 180/185cm

| Car height: from 150 to 215cm

| Car length: 500 to 520cm

| Useful width: 230cm-270cm for single platform and 460cm-540cm for double platform

| Platform: StandardGrip – EasyWalk or AluLongLife



This solution is also available as an 'outdoor' version. In 11 different model versions, you can place cars below from 150cm to 215cm, each in 5cm increments.

KLAUS Multiparking also developed a special version as a disabled parking space. The control of the MultiBase 2072i obliges the user that the disabled parking space is always directly accessible. The disabled person will therefore not have to operate the parking system. In addition, the parking place is constructed from the flat premium AluLongLife profiles. The useful width of the parking space is 350cm according to the recommendations of DIN 18025.

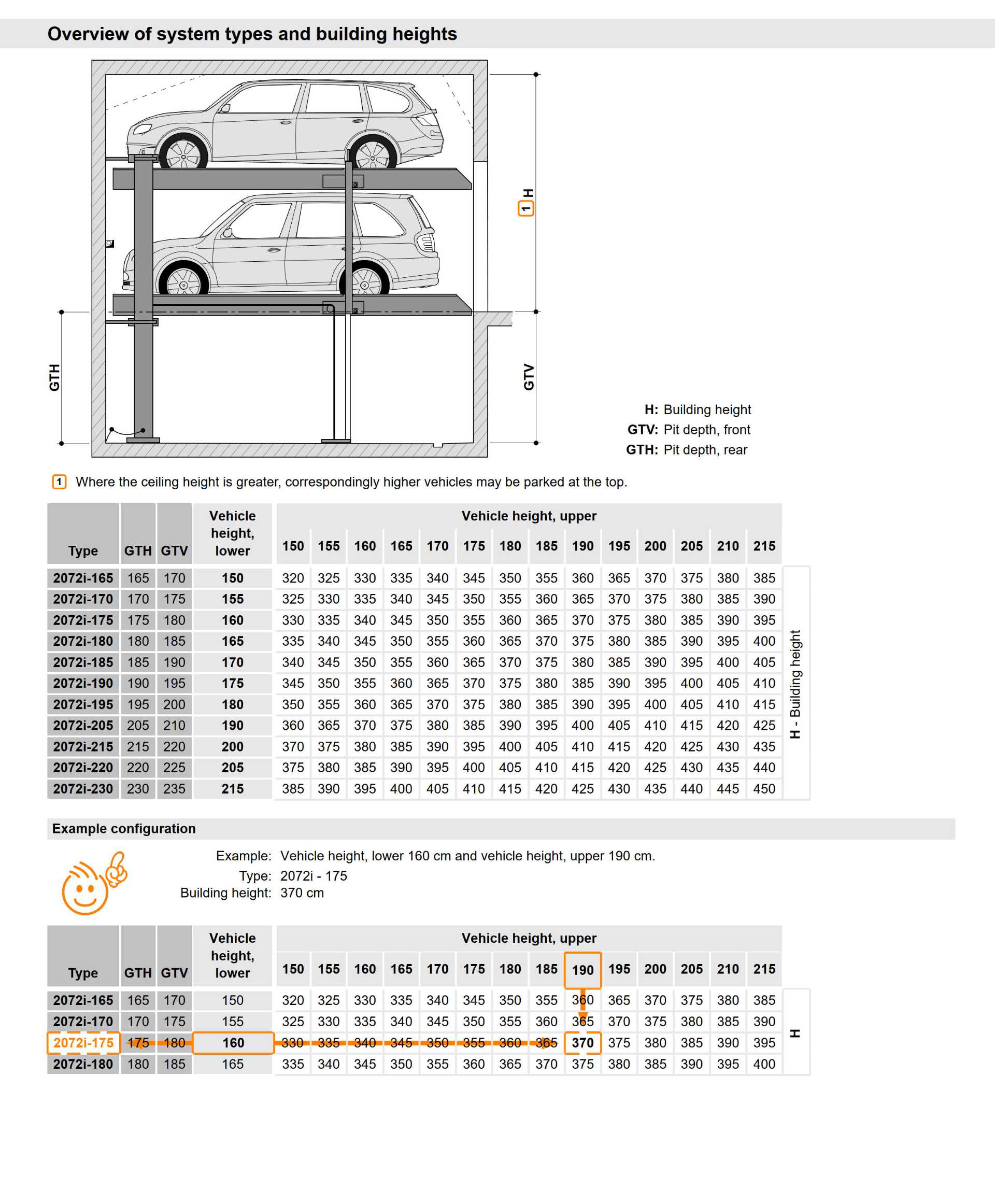

The different versions:
