multibase 2078i

With the MultiBase 2078i, we reduce installation height by up to 30cm compared to the MultiBase 2072i. This is because the platforms are inclined.

If the garage is inclined because of structural requirements, for example, this solution will be even more beneficial.

The offset of the columns allows the vehicle doors to be opened further, thus increasing user comfort.

Specifications:

| Available as single or double platform - parking of 2 to 4 cars per system

| Horizontal flat platform at the top and slightly inclined platform at the bottom

| Standard model: 2000 kg load per platform, optionally extendable to 2600 kg or 3000 kg

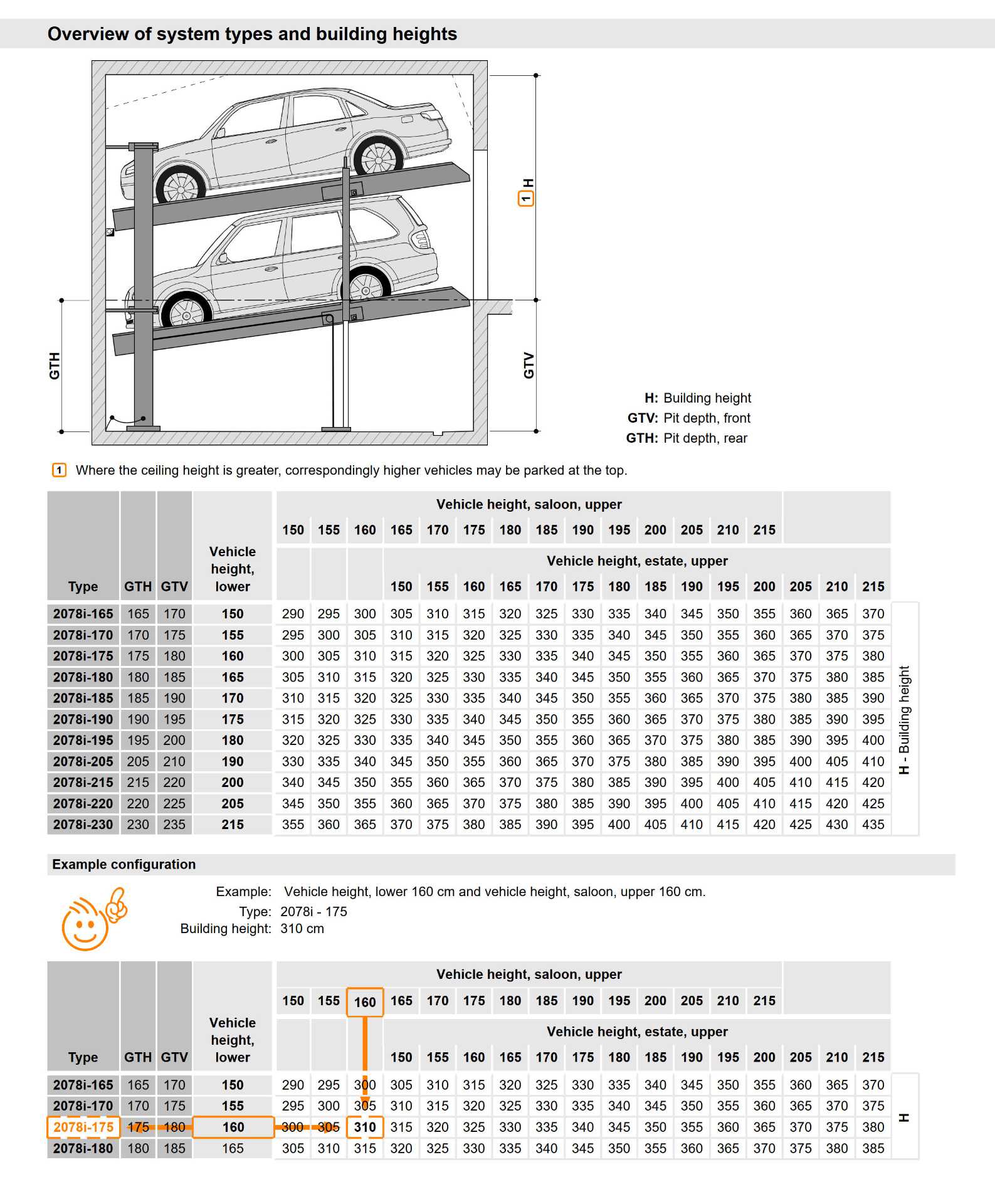

| Total height standard type: 335 cm

| Pit depth standard type: 180/185cm

| Car height: from 150 to 215cm

| Car length: 500 to 520cm

| Useful width: 230cm-270cm for single platform and 460cm-540cm for double platform

| Platform: StandardGrip – EasyWalk or AluLongLife
