multibase G63

In some projects, the MultiBase G63 can provide an economical solution to triple the number of parking spaces.

The condition is that sufficient height is available.

This parking system allows up to 6 cars to park independently.

Specifications:

| Available as single or double platform - parking of 3 to 6 trolleys per system

| All platforms are horizontal

| Standard model: 2000 kg load per platform - extendable up to 2500 kg

| Standard total height: 510 cm

| Pit depth standard type: 350/355 cm

| Car height: from 150 to 170cm

| Car length: 500 to 520cm

| Useful width: 230cm-270cm for single platform and 460cm-500cm for double platform

| Platform: StandardGrip – EasyWalk or AluLongLife



The robust technology also allows the MultiBase G63 to be placed outdoors. You can avoid building a parking basement and park 3x as many cars on the same ground area.

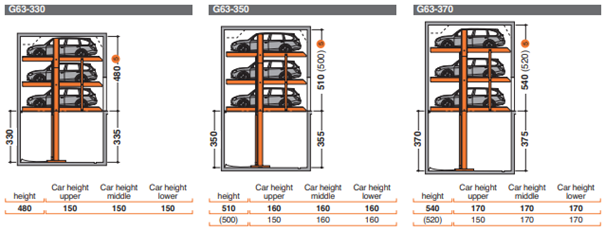

The different versions:
