multibase U20
An extension to the MultiBase U10 is the MultiBase U20. It allows two cars to be parked underground.
The floor hatch can be fitted with its own floor inlay so that this system fully blends in with the surroundings. Moreover, the floor hatch can be driven over, allowing a car to be parked on it or the system to be placed in an entrance or courtyard.
The floor hatch can be fitted with its own floor inlay so that this system fully blends in with the surroundings. Moreover, the floor hatch can be driven over, allowing a car to be parked on it or the system to be placed in an entrance or courtyard.

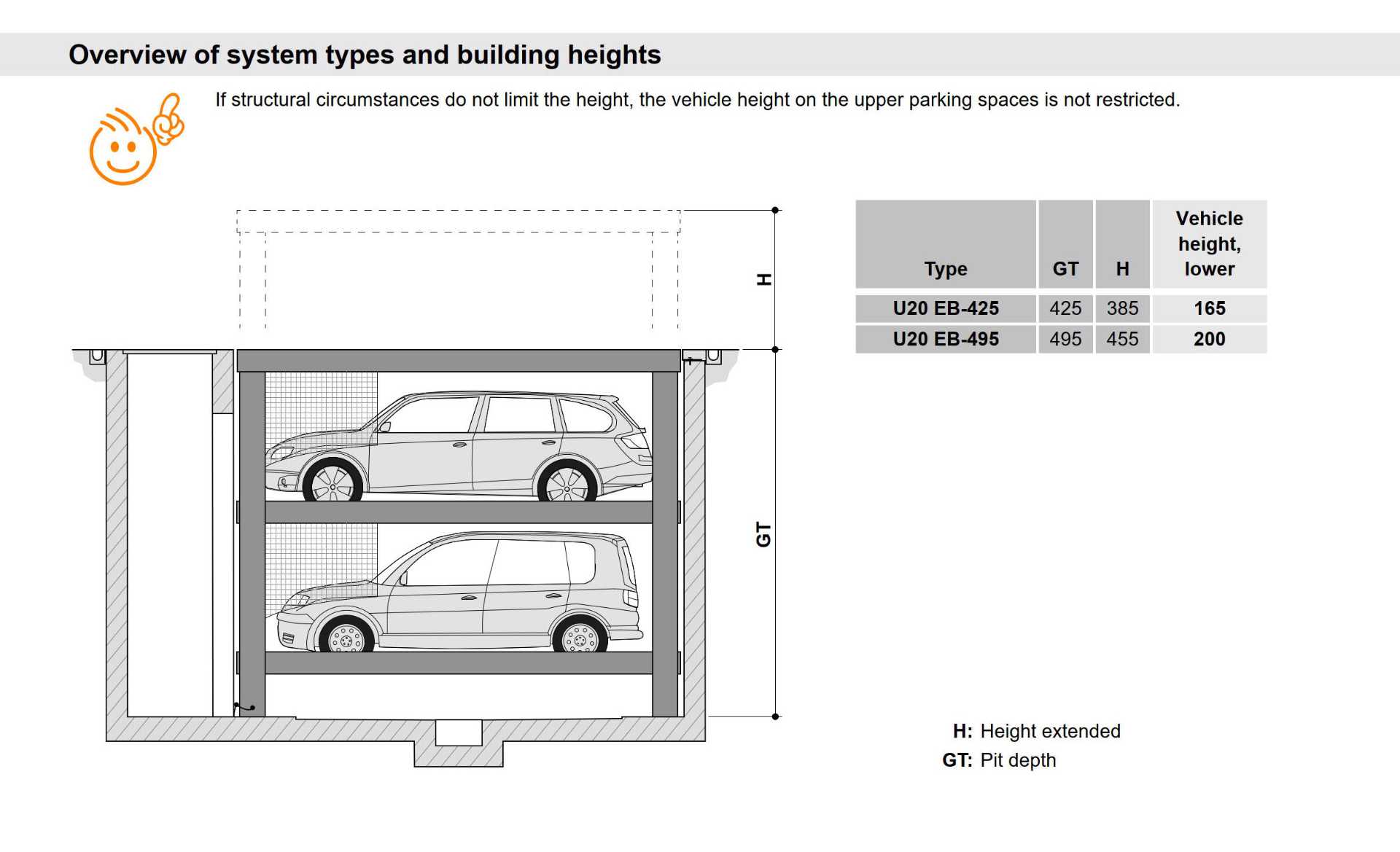

Specifications:
| Available as two single, horizontal platforms
| Standard model: 2000 kg load per platform - optionally upgradable to 2600 kg
| Pit depth standard type: 425/430 cm
| Car height: from 165 to 200 cm
| Car length: 500 to 520 cm
| Useful width: 230cm-270cm
| Platform: EasyWalk or AluLongLife
The different versions:
