Sliding platforms from Klaus Multiparking are based on a simple principle: park the vehicle on a platform that can move horizontally so that the vehicle can be shifted and passage is not obstructed. It is an extension of classic parking where driveways and drive-throughs can also be used for parking or simply fewer drive-throughs are needed.

We distinguish between several types of sliding palettes depending on how the plateaus slide: longitudinally (PE) or transversely (PQ):

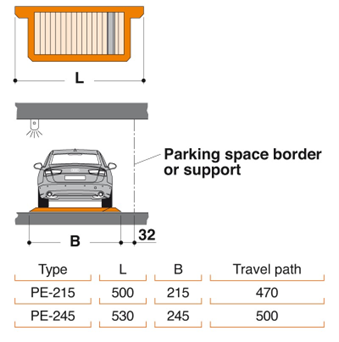

parkboard PE

The ParkBoard PE allows parked cars to be shifted longitudinally to achieve a classic parking space. By using the roadway to park cars, an efficiency increase of up to 30% can be achieved.

The parking platforms run on rails and are electrically driven.

These parking systems are therefore placed on top of the finished floor, making them ideal for use in existing buildings.

Specifications:

| Each platform has 1 car

| Horizontal flat platform

| Standard model: 2000 kg - optionally extendable to 2300 kg

| Car width: 190 cm

| Car height: 10 cm less than lowest ceiling height

| Vehicle length: 500 to 520 cm

| Platform design: StandardGrip

| Low-noise operation and low wear

Visualisation:

The different versions:

Not convinced yet? Get inspired...

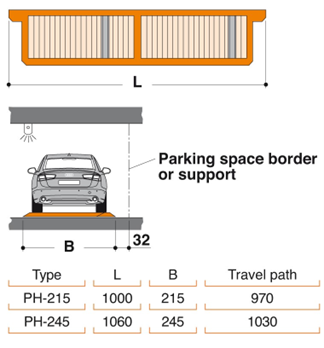

parkboard PH

The ParkBoard PH is a tandem platform that allows 2 parked cars to be shifted longitudinally at the same time to achieve a classic parking space.

The parking platforms run on rails and are electrically driven.

These parking systems are therefore placed on top of the finished floor, making them ideal for use in existing buildings.

Specifications:

| Each platform has 2 cars

| Horizontal flat platform

| Standard model: 2000 kg - optionally extendable to 2300 kg

| Car width: 190 cm

| Car height: 10 cm less than lowest ceiling height

| Car length: up to 500 cm

| Platform design: StandardGrip

| Low-noise operation and low wear

The different versions:

Not convinced yet? Get inspired...

parkboard PQ

Multiple rows of cars classically parked behind each other without an intermediate lane? It can be realised with the ParkBoard PQ.

By replacing classic lanes with parking ramps, up to 100% more parking spaces can be realised on the same surface area.

The parking platforms run on rails and are electrically driven to slide transversely.

These parking systems are thus placed on top of the finished floor, making them also extremely suitable for use in existing buildings.

Specifications:

| Each platform has 1 car

| Horizontal flat platform

| Standard model: 2000 kg - optionally extendable to 2600 kg

| Car width: 206 cm

| Car height: 10 cm less than lowest ceiling height

| Vehicle length: max. 500 cm

| Platform design: StandardGrip

| Low-noise operation and low wear

Visualisation:

The different versions:

Reference:

> Auguste - Brussel
